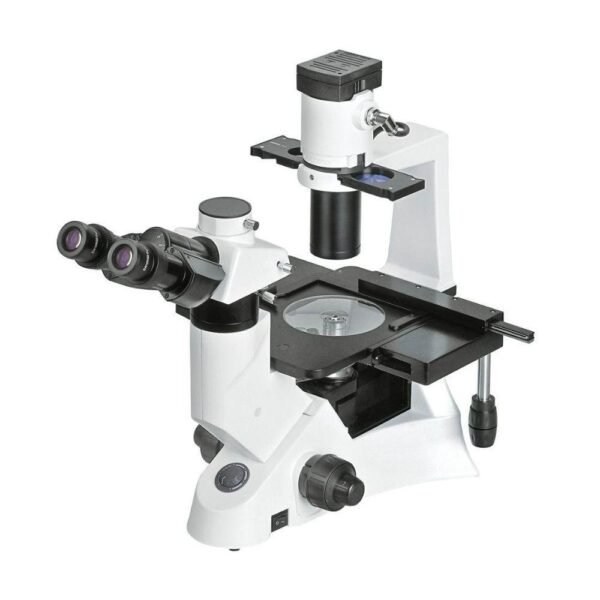

INVERTED MICROSCOPE – IXL 20

Description

• INVERTED MICROSCOPE Stand: Ergonomically designed sturdy stand of anti-rusting material
• Viewing Body: Siedentopf Trinocular, 300 inclined, 3600 rotatable, IPD 48-75mm
• Eyepieces: Wide Filed Eye Piece WF 10x/22mm, anti-reflection coated and anti-fungal mould treated
• Nosepiece: Quintuple Reverse Angle Nosepiece (Ball Bearing Type)
• Objectives: IX Series LWD DIN Infinity Plan Achromatic Objectives, Anti-reflection coated, Anti-Fungal treated
  4x/NA 0.1WD18mm, 40x/NA 0.60 WD2.6mm, IX Series LWD DIN Infinity Plan Achromatic Phase Objectives 10x/NA 0.25 WD2.6mm, 20x/NA 0.40 WD5.1mm

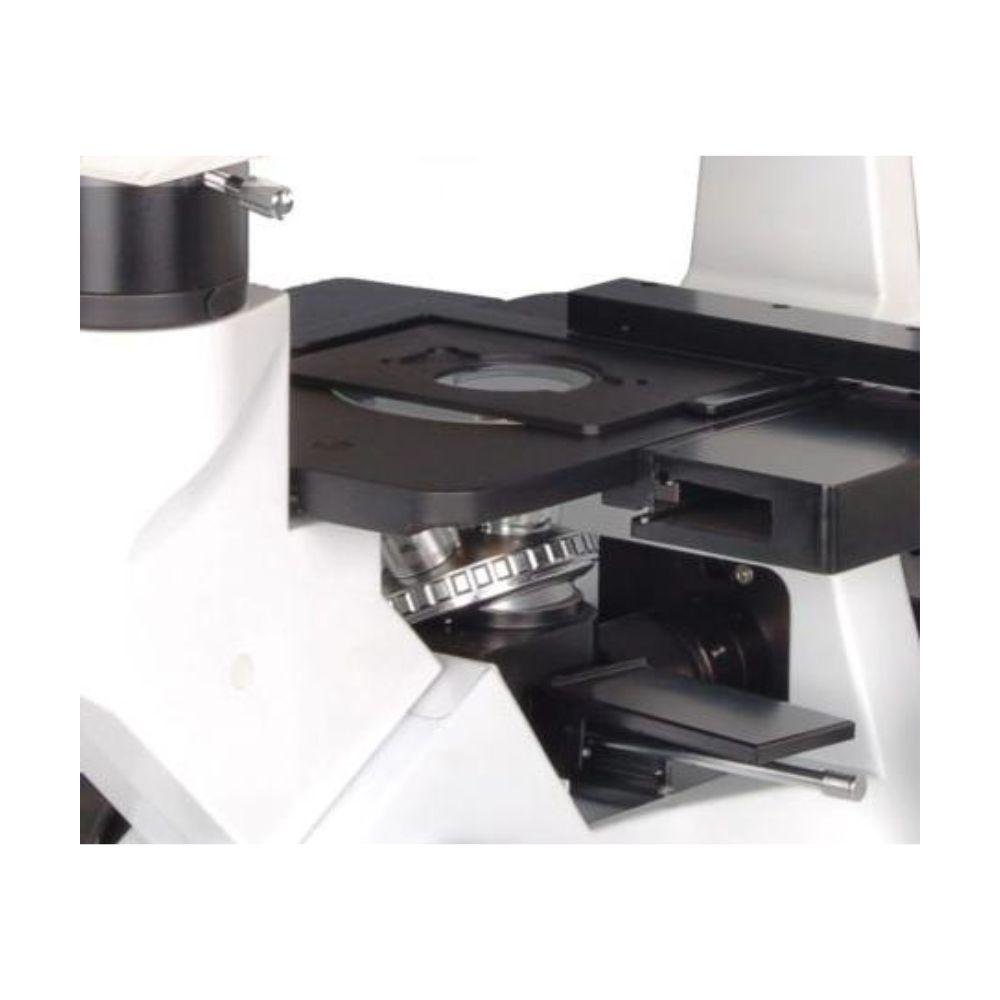

• Mechanical Stage: Fixed Plan stage 160x250mm with attachable mechanical stage X-Y coaxial control, moving range 120x78mm Specimen holders: Glass insert, Auxiliary Stages 70x180mm, Terasaki Holder, Ø38mm, Petri Dish holder Ø54mm slide glass holder
• Focusing System: Coaxial Coarse and fine adjustment, Vertical objective movement. Coarse stroke 37.7mm per rotation, fine stroke 0.2mm rotation
• Condenser: Long working distance condenser NA0.3, LWD72mm suitable for phase contrast/BF with 10-20x, 40x phase Annulus Plate and centering Telescope
• Filters: Blue, Green and Ground Glass
• Power: Power Input220V AC
• Illumination: Transmitted Illumination System LED with intensity control, with Power Supply 220V
